Configuration count

Widget to keep track of the amount of a configured entity on a host, within a host group or globally.

This widget is used for an overview of the amount of different entities on the Zabbix server. The following entities can be chosen respectively:

  • Hosts
  • Host groups
  • Items
  • Triggers
  • Services
  • Graphs
The Configuration count widget showing the number of host groups on a Zabbix server
The Configuration count widget showing the number of host groups on a Zabbix server
The Configuration count widget showing the number of host groups on a Zabbix server

Configuration

The widget configuration with entity option set to ‘Host groups’
The widget configuration with entity option set to ‘Host groups’
The widget configuration with entity option set to 'Host groups'
  • Entity: The entity to display the count for.
  • Filter: Choose to filter by hosts or host groups, or show no filter.
  • Hosts: If host filter is selected, choose specific hosts.
  • Host groups: If host group filter is selected, choose specific host groups.

If Services is selected as the entity in the configuration, the widget additionally provides the option to select which service state should be included in the count.

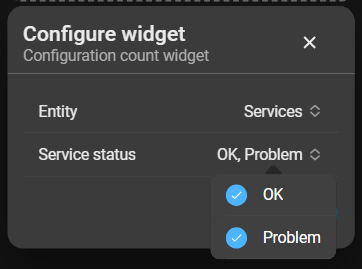

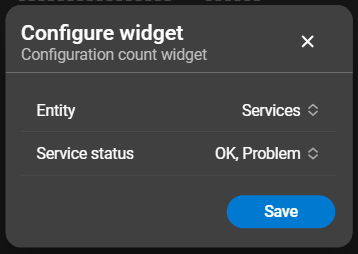

The widget configuration with ‘Services’ as the selected entity.
A dedicated option ‘Service status’ can now be used to specify states a service must have to be included in the count
The widget configuration with ‘Services’ as the selected entity.
A dedicated option ‘Service status’ can now be used to specify states a service must have to be included in the count
The widget configuration with 'Services' as the selected entity.<br>A dedicated option 'Service status' can now be used to specify states a service must have to be included in the count
