Install Prisma

A step by step guide for setting up a self-hosted Prisma instance.

This chapter will provide a reference docker compose file to use for deployment. All services of a Prisma deployment are deployed with docker compose by default.

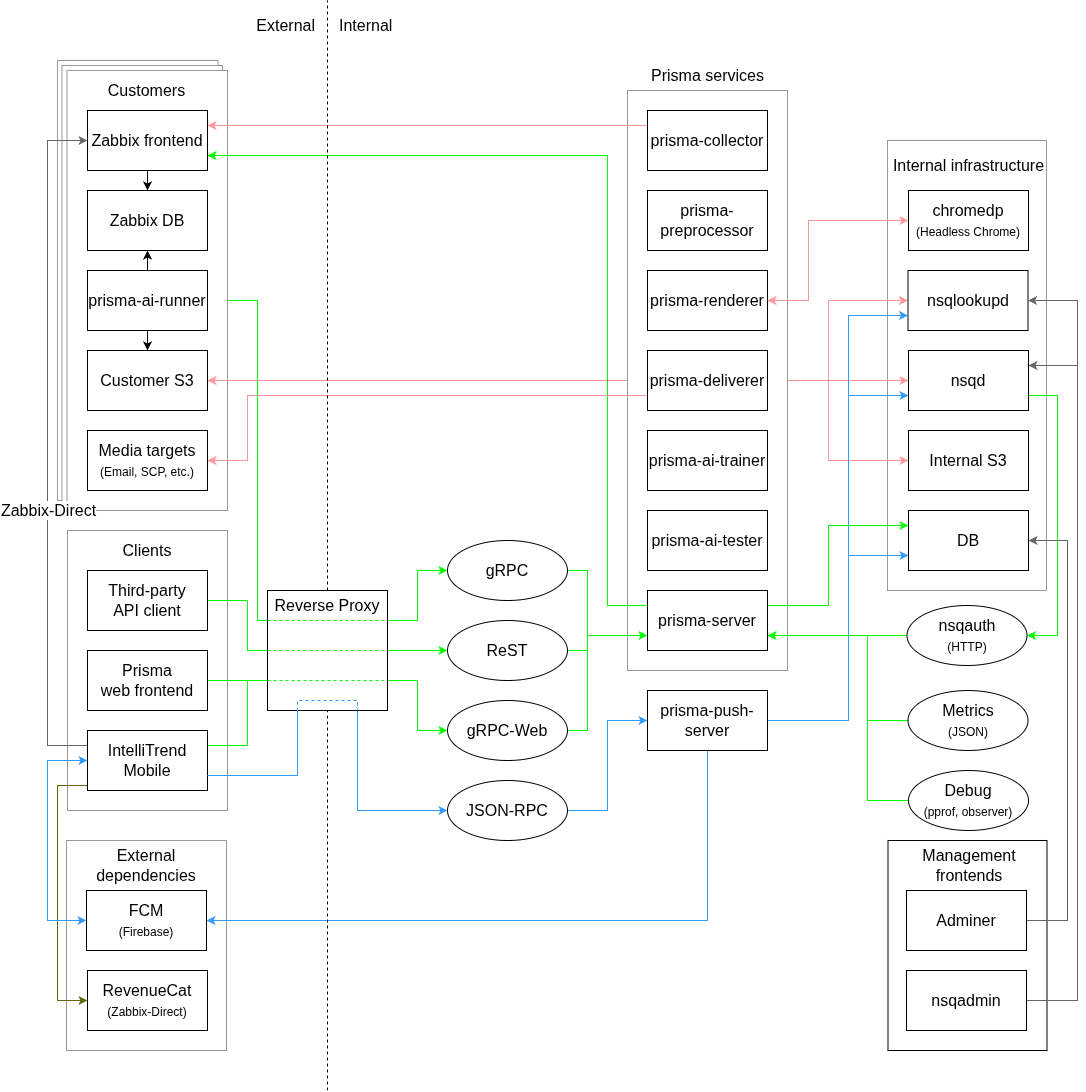

Architecture diagram

Refer to this diagram for an overview of the general architecture of Prisma:

Prisma architecture diagram

Service dependencies

Because a Prisma deployment consists of multiple services, there are some network dependencies between the services.

Most of these dependencies are already dealt with as part of the docker-compose setup, but please refer to this table if you would like to understand the relationships between the services (the source service always depends on the destination service).

Source Service	Destination Services
prisma-frontend	prisma-server gRPC-Web API must be reachable from browsers using the prisma-frontend
prisma-server	postgres, nsqd, nsqlookupd, s3, Zabbix API
prisma-collector	nsqd, nsqlookupd, s3, Zabbix API
prisma-preprocessor	nsqd, nsqlookupd, s3
prisma-renderer	nsqd, nsqlookupd, s3, pdf-worker
prisma-deliverer	nsqd, nsqlookupd, s3, delivery targets
prisma-ai-trainer	nsqd, nsqlookupd, s3
prisma-ai-tester	nsqd, nsqlookupd, s3
prisma-ai-server	prisma-server, s3
nsqd	nsqlookupd, prisma-server (nsqauth)
nsqlookupd	–
pdf-worker	–
postgres	–
s3	–

Network requirements

A Prisma deployment needs to connect to various different network services. Following is an overview of requirements on the network to allow for communication between the various services.

Note that this does not include internal connections between Prisma services that are deployed together in a single docker-compose environment by default. Instead, this overview is intended as a hint about potentially necessary firewall rules.

Network connection requirements for the client

Outgoing connections
Source	Port	Destination	Purpose
Web browser / IntelliTrend Mobile for Zabbix app	80/tcp or 443/tcp	prisma-frontend reverse proxy	Access to static frontend files and the gRPC-Web Prisma Server API
IntelliTrend Mobile for Zabbix app	443/tcp	push.intellitrend.de	Configuration of push notifications. (Only required when using Push notifications)

Network connection requirements for the server

Incoming connections
Destination	Port	Source	Purpose
prisma-frontend reverse proxy	443/tcp or 80/tcp	Clients (Web browser / IntelliTrend Mobile for Zabbix app)	Providing access to the prisma-frontend and the gRPC-Web Prisma Server API
prisma-server	8090/tcp, 8091/tcp, 8092/tcp	prisma-frontend reverse proxy (gRPC-Web), Clients (gRPC-REST)	Providing access to the gRPC native, gRPC-Web and gRPC-REST API
Outgoing connections
Source	Port	Destination	Purpose
prisma-server, prisma-collector	443/tcp	Your configured Zabbix frontend servers	Access to Zabbix API of configured servers
prisma-deliverer	Various	Configured delivery targets	Delivery of reports to configured destinations
prisma-server	443/tcp	license1.intellitrend.de, license2.intellitrend.de	Prisma license key validation

Deploying Prisma using Docker Compose

1. Prerequisites

To set up a new Prisma instance, a number of prerequisites have to be met.

Please carefully read and verify these, so you don’t run into any problems during the installation.

1.1 Preparing the host system

To set up a Prisma Server, you will need a Linux machine with Docker and Docker Compose installed.

You can check whether they are installed by running the following commands:

docker version
docker compose version

The included docker-compose.yaml file requires Docker Compose version 2.23.1 or newer.

1.2 Network considerations

Your server will need to have access to our license servers (reachable at license1.intellitrend.de and license2.intellitrend.de).

Additionally, the server needs to be reachable via HTTP/HTTPS (by default on ports 80/443, but this can be changed). Alternatively, you can use an external reverse proxy to terminate TLS and forward the connection to the Prisma frontend internally.

1.3 Obtaining the necessary credentials

Once you have purchased a Prisma license, we will send you a license key (a file ending in .key) for your Prisma instance. This key will authenticate your Prisma Server to our license server and enable all features included in your subscription.

You will need the license key during the installation process. Please do not share it with anybody.

Additionally, you will need the following:

A valid TLS server certificate, if you want to serve Prisma with TLS (Alternatively, you can terminate TLS using an external, already existing reverse proxy)
Credentials for an email server you want to use with your Prisma Server

2. Setting up the environment

Download the Prisma deployment package and extract it to a directory on your server (We recommend the name “prisma”).

Download deployment package

From the directory containing the downloaded ZIP, run:

unzip prisma-deployment.zip
cd prisma-deployment
mv template.env .env

The .env file also contains placeholders ([REPLACE_ME]) that should be replaced by random secrets. For your convenience, we provide a gen_passwords.sh file which will automatically generate new secrets for your Prisma installation.

Simply run this command to generate random secrets:

./gen_passwords.sh

The script replaces the database, encryption, S3, default account, NSQ secret, and AI server registration token placeholders. It does not configure the version, frontend, or SMTP values. Preserve .env after installation: changing MASTER_KEY or other persisted secrets can make existing data or service connections unusable.

After the secrets have been set, open the .env file in an editor and complete the following values before starting the services:

Setting	Description
`PRISMA_VERSION`	Use `7.16-latest` by default. The `MAJOR.MINOR-latest` tag is always available for each release line and points to its latest patch version. To select a specific version, see the available Prisma image tags at images.intellitrend.de.
`INT_STORAGE_VERSION`	Use the `MAJOR.MINOR-latest` tag for your int-storage release line by default (for example, `1.2-latest` for version 1.2). This version is separate from `PRISMA_VERSION`, see the available int-storage image tags at images.intellitrend.de.
`FRONTEND_URL`	The address users will open, for example `https://prisma.example.org`. Include `https://` and any nonstandard port. Do not add a path or trailing slash.
`SMTP_HOST`, `SMTP_PORT`, `SMTP_USERNAME`, `SMTP_PASSWORD`, `SMTP_TLS_MODE`, `SMTP_AUTH_MECH`, `SMTP_FROM_ADDRESS`	Your email server’s connection and sender settings. Match its required port, TLS mode, and authentication method.

Take note of the newly generated DEFAULT_ACCOUNT_PASSWORD in the .env file, as you will need it for your first login to your Prisma Server.

If your Zabbix frontend API uses plain HTTP, set ZABBIX_ALLOW_INSECURE_CONNECTIONS=true in .env. The supplied Compose file passes this value to the Prisma server. Leave it false when Zabbix uses HTTPS.

If you set secrets manually, give each NSQ secret a different value. For example, PRISMA_SERVER_NSQSECRET and PRISMA_COLLECTOR_NSQSECRET don’t need to be the same.

Show the example .env file

# Set your Prisma version in the line below (For example 7.16-latest)
PRISMA_VERSION=7.16-latest
# The docker registry the Prisma images are pulled from
PRISMA_DOCKER_REGISTRY_PATH=images.intellitrend.de/prisma
# Set your Prisma version in the line below (For example 1.2-latest)
INT_STORAGE_VERSION=1.2-latest
# The docker registry the int-storage images are pulled from
INT_STORAGE_DOCKER_REGISTRY_PATH=images.intellitrend.de/int-storage

# The timezone of your Prisma server
TIMEZONE=Europe/Berlin

# The URL at which your frontend will be reachable at by users
FRONTEND_URL=[REPLACE_ME]

# By default, only HTTPS connections are allowed for security purposes.
# If you need to connect using unencrypted HTTP, enable the following flag.
ZABBIX_ALLOW_INSECURE_CONNECTIONS=false

# The database (root) credentials
DB_DATABASE=prisma
DB_USERNAME=prisma
DB_PASSWORD=[REPLACE_ME]

# The master key used to encrypt database values and sign sessions
MASTER_KEY=[REPLACE_ME]

# The SMTP credentials to use for sending emails
SMTP_HOST=[REPLACE_ME]
SMTP_PORT=465
SMTP_USERNAME=[REPLACE_ME]
SMTP_PASSWORD=[REPLACE_ME]
# One of: none, starttls-mandatory, starttls-opportunistic, tls-explicit (default)
SMTP_TLS_MODE=tls-explicit
# One of: none, PLAIN (default), LOGIN, CRAM-MD5
SMTP_AUTH_MECH=PLAIN
# The sender email address for emails sent by the Prisma server
SMTP_FROM_ADDRESS=[REPLACE_ME]

# The master key for the internal S3 server
S3_MASTER_KEY=[REPLACE_ME]

# The credentials of the Prisma default account (admin@prisma.loc)
DEFAULT_ACCOUNT_ENABLED=true
DEFAULT_ACCOUNT_PASSWORD=[REPLACE_ME]

# Secrets for authentication on the NSQ message queue
PRISMA_SERVER_NSQSECRET=[REPLACE_ME]
PRISMA_COLLECTOR_NSQSECRET=[REPLACE_ME]
PRISMA_PREPROCESSOR_NSQSECRET=[REPLACE_ME]
PRISMA_RENDERER_NSQSECRET=[REPLACE_ME]
PRISMA_DELIVERER_NSQSECRET=[REPLACE_ME]
PRISMA_AI_TESTER_NSQSECRET=[REPLACE_ME]
PRISMA_AI_TRAINER_NSQSECRET=[REPLACE_ME]

# Registration token of the bundled AI server, which is registered automatically by the Prisma server
PRISMA_AI_SERVER_REGISTRATION_TOKEN=[REPLACE_ME]

3. Adding your license file

Copy the license file into prisma-deployment/, beside docker-compose.yaml, and name the copy prisma.key. Confirm that prisma.key, .env, and docker-compose.yaml are in the same directory. Docker Compose mounts ./prisma.key into the server container.

Your Prisma Server will use this file to communicate with one of our redundant license servers and activate the modules in your subscription. For this reason, the Prisma Server will need to be able to reach our license servers.

Show the full docker-compose.yaml file

services:
  # ------------  Prisma Frontend  ------------
  prisma-frontend:
    image: ${PRISMA_DOCKER_REGISTRY_PATH}/prisma-frontend:${PRISMA_VERSION}
    restart: always
    logging:
      driver: "json-file"
      options:
        max-size: "10m"
        max-file: "5"
    ports:
      - 80:80
      # Uncomment this line if you want to terminate TLS in this container.
      #- 443:443
    volumes:
      - ./prisma-frontend/data/cfg/prisma-base.conf:/etc/nginx/conf.d/prisma-base.conf

      # Uncomment this line if TLS is terminated on an external proxy
      #- ./prisma-frontend/data/cfg/prisma-http.conf:/etc/nginx/conf.d/default.conf

      # Uncomment these lines if you want to terminate TLS in this container.
      # You will need to install your TLS certificates in the directory below.
      #- ./prisma-frontend/data/cfg/prisma-https.conf:/etc/nginx/conf.d/default.conf
      #- ./prisma-frontend/data/ssl/:/etc/nginx/ssl/

  # ------------  Prisma Server  ------------
  prisma-server:
    image: ${PRISMA_DOCKER_REGISTRY_PATH}/prisma-server:${PRISMA_VERSION}
    restart: always
    logging:
      driver: "json-file"
      options:
        max-size: "10m"
        max-file: "5"
    command: ./prisma-server
    depends_on:
      postgres:
        condition: service_healthy
      s3:
        condition: service_started
      nsqd:
        condition: service_started
    environment:
      # API Server Configuration
      PRISMA_SERVER_LOG_LEVEL: "info"
      PRISMA_SERVER_SERVER_GRPC_PORT: "8090"
      PRISMA_SERVER_SERVER_GRPC_WEB_PORT: "8091"
      PRISMA_SERVER_SERVER_REST_PORT: "8092"
      PRISMA_SERVER_SERVER_FRONTEND_URL: $FRONTEND_URL
      PRISMA_SERVER_SERVER_CORS_ALLOWED_ORIGINS: "$FRONTEND_URL http://localhost capacitor://localhost"
      PRISMA_SERVER_SERVER_SLOW_QUERY_THRESHOLD: "1500"
      PRISMA_SERVER_SERVER_THREAD_GUARD_ENABLE: "true"
      PRISMA_SERVER_SERVER_DISABLE_RATELIMIT: true
      PRISMA_SERVER_SESSIONS_EXPIRY: 3600
      # Initialization
      PRISMA_SERVER_INIT_DEFAULT_ACCOUNT_ENABLED: $DEFAULT_ACCOUNT_ENABLED
      PRISMA_SERVER_INIT_DEFAULT_ACCOUNT_PASSWORD: $DEFAULT_ACCOUNT_PASSWORD
      # Registers the bundled AI server on startup (see "configs" at the end of this file)
      PRISMA_SERVER_INIT_AI_SERVERS_CONFIG_PATH: "/usr/local/intellitrend/prisma/etc/ai-servers.yaml"
      # Encryption
      PRISMA_SERVER_CRYPTO_MASTER_KEY: $MASTER_KEY
      # User Sync
      PRISMA_SERVER_USERSYNC_SYNC_ON_START: true
      PRISMA_SERVER_USERSYNC_SCHEDULE: "0 3 * * *" # we will sync with all zabbix servers, every day at 03:00
      # User Cache
      PRISMA_SERVER_CACHING_EVICTION_TIME: 3600 # users get evicted after one hour of inactivity
      PRISMA_SERVER_CACHING_HOUSEKEEPER_SCHEDULER: "*/15 * * * *" # run housekeeper every 15min
      # HA
      PRISMA_SERVER_HA_ENABLE: "false"
      PRISMA_SERVER_HA_LEADER_LEASE_LENGTH: 60
      PRISMA_SERVER_HA_LEADER_INITIAL_LEASE_LENGTH: 150
      PRISMA_SERVER_HA_LONG_POLL_INTERVALL: 30
      PRISMA_SERVER_HA_SHORT_POLL_INTERVALL: 15
      # NSQ
      PRISMA_SERVER_NSQRPC_CONTROL_MESSAGE_TIMEOUT: 600 # 10 minutes maximum transactions between services
      PRISMA_SERVER_NSQ_SERVICE_IDENTITY: "prisma_server"
      # NSQ connection
      PRISMA_SERVER_NSQ_CONSUME_PORT: "4161"
      PRISMA_SERVER_NSQ_CONSUME_ADDRESS: "nsqlookupd"
      PRISMA_SERVER_NSQ_PRODUCE_PORT: "4150"
      PRISMA_SERVER_NSQ_PRODUCE_ADDRESS: "nsqd"
      # NSQ TLS
      PRISMA_SERVER_NSQ_TLS_ENABLE: "false"
      PRISMA_SERVER_NSQ_TLS_CA_CERTIFICATE: "/usr/local/intellitrend/prisma/ssl/ca.cert"
      PRISMA_SERVER_NSQ_TLS_SKIP_CERTIFICATE_VALIDATION: "true"
      # NSQ Authentication
      PRISMA_SERVER_NSQAUTH_ENABLE: "true"
      PRISMA_SERVER_NSQAUTH_PORT: "4180"
      PRISMA_SERVER_NSQ_AUTH_SECRET: $PRISMA_SERVER_NSQSECRET
      PRISMA_SERVER_NSQAUTH_SERVER_SECRET: $PRISMA_SERVER_NSQSECRET
      PRISMA_SERVER_NSQAUTH_COLLECTOR_SECRET: $PRISMA_COLLECTOR_NSQSECRET
      PRISMA_SERVER_NSQAUTH_PREPROCESSOR_SECRET: $PRISMA_PREPROCESSOR_NSQSECRET
      PRISMA_SERVER_NSQAUTH_RENDERER_SECRET: $PRISMA_RENDERER_NSQSECRET
      PRISMA_SERVER_NSQAUTH_DELIVERER_SECRET: $PRISMA_DELIVERER_NSQSECRET
      PRISMA_SERVER_NSQAUTH_AI_TESTER_SECRET: $PRISMA_AI_TESTER_NSQSECRET
      PRISMA_SERVER_NSQAUTH_AI_TRAINER_SECRET: $PRISMA_AI_TRAINER_NSQSECRET
      # Licensing
      PRISMA_SERVER_LICENSE_PATH: "/usr/local/intellitrend/prisma/etc/prisma.key"
      # Zabbix
      PRISMA_SERVER_ZABBIX_TRACE_ENABLE: "false"
      PRISMA_SERVER_ZABBIX_ALLOW_INSECURE_CONNECTIONS: $ZABBIX_ALLOW_INSECURE_CONNECTIONS
      # TLS
      PRISMA_SERVER_SERVER_GRPC_WEB_TLS_ENABLE: "false"
      PRISMA_SERVER_SERVER_TLS_CERTIFICATE_PATH: "/usr/local/intellitrend/prisma/ssl/prisma-server.cert"
      PRISMA_SERVER_SERVER_TLS_PRIVATE_KEY_PATH: "/usr/local/intellitrend/prisma/ssl/prisma-server.key"
      # Database
      PRISMA_SERVER_DB_PORT: 5432
      PRISMA_SERVER_DB_NAME: $DB_DATABASE
      PRISMA_SERVER_DB_ADDRESS: postgres
      PRISMA_SERVER_DB_USER: $DB_USERNAME
      PRISMA_SERVER_DB_PASSWORD: $DB_PASSWORD
      PRISMA_SERVER_DB_DRIVER: "postgres"
      PRISMA_SERVER_DB_TRACE_ENABLE: "false"
      PRISMA_SERVER_DB_RECONNECT_DELAY: 15
      # S3
      PRISMA_SERVER_S3_ADMIN_ACCESS_KEY: prisma
      PRISMA_SERVER_S3_ADMIN_SECRET_KEY: $S3_MASTER_KEY
      PRISMA_SERVER_S3_STORAGE_URL: "s3:8333"
      PRISMA_SERVER_S3_SYNC_INTERVAL: 300
      PRISMA_SERVER_S3_TRACE_ENABLE: false
      # SMTP
      PRISMA_SERVER_MAILER_SMTP_HOST: $SMTP_HOST
      PRISMA_SERVER_MAILER_SMTP_PORT: $SMTP_PORT
      PRISMA_SERVER_MAILER_SMTP_USERNAME: $SMTP_USERNAME
      PRISMA_SERVER_MAILER_SMTP_PASSWORD: $SMTP_PASSWORD
      PRISMA_SERVER_MAILER_SMTP_TLS_MODE: $SMTP_TLS_MODE
      PRISMA_SERVER_MAILER_SMTP_AUTH_MECH: $SMTP_AUTH_MECH
      PRISMA_SERVER_MAILER_SMTP_USER_AGENT: "prisma-server"
      PRISMA_SERVER_MAILER_SMTP_HELO_NAME: "" # if left empty, will use hostname by default
      PRISMA_SERVER_MAILER_FROM_ADDRESS: $SMTP_FROM_ADDRESS
      # LDAP
      PRISMA_SERVER_LDAPAUTH_ADDRESS: ""
      PRISMA_SERVER_LDAPAUTH_PORT: 389
      PRISMA_SERVER_LDAPAUTH_DOMAIN: ""
      PRISMA_SERVER_LDAPAUTH_TLS_ENABLE: "false"
      PRISMA_SERVER_LDAPAUTH_TLS_CA_CERTIFICATE: ""
      PRISMA_SERVER_LDAPAUTH_TLS_SKIP_CERTIFICATE_VALIDATION: "false"
      # Metrics
      PRISMA_SERVER_METRICS_PORT: "8094"
      PRISMA_SERVER_METRICS_IDENTITY: "prisma-server"
      PRISMA_SERVER_METRICS_HISTORY_SIZE: 1000
      PRISMA_SERVER_METRICS_STATE_FILE: "/usr/local/intellitrend/prisma/var/metrics/state.json"
    ports:
      #  - 4180:4180 # NSQ-Auth
      - 8090:8090 # gRPC
      - 8091:8091 # gRPC-Web (exposed publically through prisma-frontend reverse proxy)
    #  - 8092:8092 # REST
    #  - 8094:8094 # Metrics
    volumes:
      # Place your license key here
      - ./prisma.key:/usr/local/intellitrend/prisma/etc/prisma.key:ro
      # A directory used to persist metrics between restarts
      - ./prisma-server/data/metrics/:/usr/local/intellitrend/prisma/var/metrics:rw
    configs:
      - source: ai-servers
        target: /usr/local/intellitrend/prisma/etc/ai-servers.yaml

  # ------------  Prisma Collector  ------------
  prisma-collector:
    image: ${PRISMA_DOCKER_REGISTRY_PATH}/prisma-collector:${PRISMA_VERSION}
    restart: always
    logging:
      driver: "json-file"
      options:
        max-size: "10m"
        max-file: "5"
    environment:
      PRISMA_COLLECTOR_LOG_LEVEL: "info"
      PRISMA_COLLECTOR_NSQ_SERVICE_IDENTITY: "prisma_collector"
      PRISMA_COLLECTOR_NSQ_AUTH_ENABLE: "true"
      PRISMA_COLLECTOR_NSQ_AUTH_SECRET: $PRISMA_COLLECTOR_NSQSECRET
      PRISMA_COLLECTOR_NSQ_CONSUME_PORT: "4161"
      PRISMA_COLLECTOR_NSQ_CONSUME_ADDRESS: "nsqlookupd"
      PRISMA_COLLECTOR_NSQ_PRODUCE_PORT: "4150"
      PRISMA_COLLECTOR_NSQ_PRODUCE_ADDRESS: "nsqd"
      PRISMA_COLLECTOR_METRICS_IDENTITY: "prisma-collector"
    depends_on:
      prisma-server:
        condition: service_started
      nsqd:
        condition: service_started

  # ------------  Prisma Preprocessor  ------------
  prisma-preprocessor:
    image: ${PRISMA_DOCKER_REGISTRY_PATH}/prisma-preprocessor:${PRISMA_VERSION}
    restart: always
    logging:
      driver: "json-file"
      options:
        max-size: "10m"
        max-file: "5"
    environment:
      PRISMA_PREPROCESSOR_LOG_LEVEL: "info"
      PRISMA_PREPROCESSOR_NSQ_SERVICE_IDENTITY: "prisma_preprocessor"
      PRISMA_PREPROCESSOR_NSQ_AUTH_ENABLE: "true"
      PRISMA_PREPROCESSOR_NSQ_AUTH_SECRET: $PRISMA_PREPROCESSOR_NSQSECRET
      PRISMA_PREPROCESSOR_NSQ_CONSUME_PORT: "4161"
      PRISMA_PREPROCESSOR_NSQ_CONSUME_ADDRESS: "nsqlookupd"
      PRISMA_PREPROCESSOR_NSQ_PRODUCE_PORT: "4150"
      PRISMA_PREPROCESSOR_NSQ_PRODUCE_ADDRESS: "nsqd"
      PRISMA_PREPROCESSOR_METRICS_IDENTITY: "prisma-preprocessor"
    depends_on:
      prisma-server:
        condition: service_started
      nsqd:
        condition: service_started

  # ------------  Prisma Deliverer  ------------
  prisma-deliverer:
    image: ${PRISMA_DOCKER_REGISTRY_PATH}/prisma-deliverer:${PRISMA_VERSION}
    restart: always
    logging:
      driver: "json-file"
      options:
        max-size: "10m"
        max-file: "5"
    environment:
      PRISMA_DELIVERER_LOG_LEVEL: "info"
      PRISMA_DELIVERER_NSQ_SERVICE_IDENTITY: "prisma_deliverer"
      PRISMA_DELIVERER_NSQ_CONSUME_PORT: "4161"
      PRISMA_DELIVERER_NSQ_CONSUME_ADDRESS: "nsqlookupd"
      PRISMA_DELIVERER_NSQ_PRODUCE_PORT: "4150"
      PRISMA_DELIVERER_NSQ_PRODUCE_ADDRESS: "nsqd"
      PRISMA_DELIVERER_NSQ_AUTH_ENABLE: "true"
      PRISMA_DELIVERER_NSQ_AUTH_SECRET: $PRISMA_DELIVERER_NSQSECRET
      PRISMA_DELIVERER_METRICS_IDENTITY: "prisma-deliverer"
    depends_on:
      prisma-server:
        condition: service_started
      nsqd:
        condition: service_started

  # ------------  Prisma Renderer  ------------
  prisma-renderer:
    image: ${PRISMA_DOCKER_REGISTRY_PATH}/prisma-renderer:${PRISMA_VERSION}
    restart: always
    logging:
      driver: "json-file"
      options:
        max-size: "10m"
        max-file: "5"
    environment:
      PRISMA_RENDERER_LOG_LEVEL: "info"
      PRISMA_RENDERER_NSQ_SERVICE_IDENTITY: "prisma_renderer"
      PRISMA_RENDERER_NSQ_CONSUME_PORT: "4161"
      PRISMA_RENDERER_NSQ_CONSUME_ADDRESS: "nsqlookupd"
      PRISMA_RENDERER_NSQ_PRODUCE_PORT: "4150"
      PRISMA_RENDERER_NSQ_PRODUCE_ADDRESS: "nsqd"
      PRISMA_RENDERER_NSQ_AUTH_ENABLE: "true"
      PRISMA_RENDERER_NSQ_AUTH_SECRET: $PRISMA_RENDERER_NSQSECRET
      PRISMA_RENDERER_RENDERER_CHROME_ADDRESS: "pdf-worker"
      PRISMA_RENDERER_RENDERER_CHROME_PORT: "9222"
      PRISMA_RENDERER_RENDERER_WEBSERVER_ADDRESS: "prisma-renderer"
      PRISMA_RENDERER_METRICS_IDENTITY: "prisma-renderer"
    depends_on:
      prisma-server:
        condition: service_started
      nsqd:
        condition: service_started
      pdf-worker:
        condition: service_started

  # ------------  Prisma AI-Tester  ------------
  prisma-ai-tester:
    image: ${PRISMA_DOCKER_REGISTRY_PATH}/prisma-ai-tester:${PRISMA_VERSION}
    restart: always
    logging:
      driver: "json-file"
      options:
        max-size: "10m"
        max-file: "5"
    environment:
      PRISMA_AI_TESTER_LOG_LEVEL: "info"
      PRISMA_AI_TESTER_NSQ_SERVICE_IDENTITY: "prisma_ai_tester"
      PRISMA_AI_TESTER_NSQ_CONSUME_PORT: "4161"
      PRISMA_AI_TESTER_NSQ_CONSUME_ADDRESS: "nsqlookupd"
      PRISMA_AI_TESTER_NSQ_PRODUCE_PORT: "4150"
      PRISMA_AI_TESTER_NSQ_PRODUCE_ADDRESS: "nsqd"
      PRISMA_AI_TESTER_NSQ_AUTH_ENABLE: "true"
      PRISMA_AI_TESTER_NSQ_AUTH_SECRET: $PRISMA_AI_TESTER_NSQSECRET
      PRISMA_AI_TESTER_METRICS_IDENTITY: "prisma-ai-tester"
    depends_on:
      prisma-server:
        condition: service_started
      nsqd:
        condition: service_started

  # ------------  Prisma AI-Trainer  ------------
  prisma-ai-trainer:
    image: ${PRISMA_DOCKER_REGISTRY_PATH}/prisma-ai-trainer:${PRISMA_VERSION}
    restart: always
    logging:
      driver: "json-file"
      options:
        max-size: "10m"
        max-file: "5"
    environment:
      PRISMA_AI_TRAINER_LOG_LEVEL: "info"
      PRISMA_AI_TRAINER_NSQ_SERVICE_IDENTITY: "prisma_ai_trainer"
      PRISMA_AI_TRAINER_NSQ_CONSUME_PORT: "4161"
      PRISMA_AI_TRAINER_NSQ_CONSUME_ADDRESS: "nsqlookupd"
      PRISMA_AI_TRAINER_NSQ_PRODUCE_PORT: "4150"
      PRISMA_AI_TRAINER_NSQ_PRODUCE_ADDRESS: "nsqd"
      PRISMA_AI_TRAINER_NSQ_AUTH_ENABLE: "true"
      PRISMA_AI_TRAINER_NSQ_AUTH_SECRET: $PRISMA_AI_TRAINER_NSQSECRET
      PRISMA_AI_TRAINER_METRICS_IDENTITY: "prisma-ai-trainer"
    depends_on:
      prisma-server:
        condition: service_started
      nsqd:
        condition: service_started

  # ------------  Prisma AI-Server  ------------
  prisma-ai-server:
    image: ${PRISMA_DOCKER_REGISTRY_PATH}/prisma-ai-server:${PRISMA_VERSION}
    restart: always
    logging:
      driver: "json-file"
      options:
        max-size: "10m"
        max-file: "5"
    environment:
      PRISMA_AI_SERVER_LOG_LEVEL: "info"
      PRISMA_AI_SERVER_AISERVER_PORT: "8190"
      PRISMA_AI_SERVER_AISERVER_REGISTRATION_TOKEN: "$PRISMA_AI_SERVER_REGISTRATION_TOKEN"
      PRISMA_AI_SERVER_AISERVER_CONFIG_POLL_INTERVAL: "30"
      PRISMA_AI_SERVER_AISERVER_STATUS_INTERVAL: "30"
      PRISMA_AI_SERVER_AISERVER_PRISMA_SERVER_GRPC_ADDRESS: "prisma-server"
      PRISMA_AI_SERVER_AISERVER_PRISMA_SERVER_GRPC_PORT: "8090"
      PRISMA_AI_SERVER_AISERVER_PRISMA_SERVER_GRPC_TLS_ENABLE: "false"
      PRISMA_AI_SERVER_AISERVER_PRISMA_SERVER_GRPC_WEB_ADDRESS: "prisma-server"
      PRISMA_AI_SERVER_AISERVER_PRISMA_SERVER_GRPC_WEB_PORT: "8091"
      PRISMA_AI_SERVER_AISERVER_PRISMA_SERVER_GRPC_WEB_TLS_ENABLE: "false"
      PRISMA_AI_SERVER_METRICS_IDENTITY: "prisma-ai-server"
    depends_on:
      prisma-server:
        condition: service_started

  # ------------  Chrome headless  ------------
  pdf-worker:
    image: chromedp/headless-shell:141.0.7378.4
    restart: always
    logging:
      driver: "json-file"
      options:
        max-size: "10m"
        max-file: "5"

  # -----------  Postgres database  -----------
  postgres:
    image: postgres:17
    restart: always
    logging:
      driver: "json-file"
      options:
        max-size: "10m"
        max-file: "5"
    environment:
      POSTGRES_DATABASE: $DB_DATABASE
      POSTGRES_USER: $DB_USERNAME
      POSTGRES_PASSWORD: $DB_PASSWORD
    volumes:
      - ./postgres/data/var/lib/postgres/data:/var/lib/postgresql/data:rw
    healthcheck:
      test: ["CMD", "pg_isready", "--username", $DB_USERNAME]
      interval: 1m
      timeout: 5s
      retries: 5
      start_period: 1m30s
      start_interval: 1s
    #ports:
    #    - "5432:5432"

  # ------------  NSQLookupd  ------------
  nsqlookupd:
    image: nsqio/nsq
    restart: always
    logging:
      driver: "json-file"
      options:
        max-size: "10m"
        max-file: "5"
    command: /nsqlookupd
    #ports:
    #    - 4161:4161

  # ------------  NSQD  ------------
  nsqd:
    image: nsqio/nsq
    restart: always
    logging:
      driver: "json-file"
      options:
        max-size: "10m"
        max-file: "5"
    command: /nsqd --lookupd-tcp-address=nsqlookupd:4160 --auth-http-address=prisma-server:4180 --mem-queue-size=1000000 --max-msg-size=419430400 --data-path /nsqd-data --broadcast-address=nsqd
    depends_on:
      nsqlookupd:
        condition: service_started
    volumes:
      - ./nsqd/data/nsqd-data:/nsqd-data
    environment:
      HTTP_PROXY: ""
      HTTPS_PROXY: ""
      http_proxy: ""
      https_proxy: ""
    #ports:
    #    - 4150:4150

  # ------------  int-storage / S3  ------------
  s3:
    image: ${INT_STORAGE_DOCKER_REGISTRY_PATH}/int-storage:${INT_STORAGE_VERSION}
    restart: always
    environment:
      - INT_STORAGE_LOG_LEVEL=info
      - INT_STORAGE_STORE_DATA_DIR=/data
      - INT_STORAGE_STORE_ROOT_ACCESS_KEY=prisma
      - INT_STORAGE_STORE_ROOT_SECRET_KEY=$S3_MASTER_KEY
      - INT_STORAGE_SERVER_PORT=8333
    volumes:
      - ./int-storage/data:/data:rw
    logging:
      driver: "json-file"
      options:
        max-size: "10m"
        max-file: "5"

configs:
  # AI servers registered by the Prisma server on startup, unless one with the same registration token exists
  ai-servers:
    content: |
      ai_servers:
        - name: "Prisma AI Server"
          registration_token: "${PRISMA_AI_SERVER_REGISTRATION_TOKEN}"
          external_url: "${FRONTEND_URL}/ai-server/"
          shared: true
          default: true

4. Configure TLS / reverse proxy

Choose one route below. The prisma-frontend container serves the web app and forwards /service.Prisma requests to the Prisma server.

Security features in modern browsers require that the Prisma frontend and the gRPC-Web API of the Prisma Server are reachable from your browser using HTTPS.

4.1. Using an external reverse proxy

If you have an existing reverse proxy handling HTTPS termination, edit the docker-compose.yaml file as follows:

In the prisma-frontend service definition, uncomment the bind mount for the ./df/frontend/data/cfg/prisma-http.conf config file
Make sure the prisma-https.conf config file is not included

The prisma-frontend service definition in your docker-compose.yaml file should now look like this (with additional lines omitted at [...]):

prisma-frontend:
  # [...]
  ports:
    - 80:80
  volumes:
    - ./prisma-frontend/data/cfg/prisma-base.conf:/etc/nginx/conf.d/prisma-base.conf
    - ./prisma-frontend/data/cfg/prisma-http.conf:/etc/nginx/conf.d/default.conf

Now you can simply configure your external reverse proxy to pass any requests to a subdomain of your choice to port 80 of the prisma-frontend container.

Most common reverse proxies (such as Traefik, nginx or Apache) should be usable for this purpose.

For configuration instructions, please consult the documentation of your specific reverse proxy software. The following endpoints need to be configured:

Any URLs at https://yoursubdomain/ need to point to the HTTP or HTTPS endpoint of the prisma-frontend container.
The reverse proxy must allow websocket upgrades for any URLs starting with https://yoursubdomain/service.Prisma/Stream*, where Stream* means any method that starts with Stream.

If you use an external reverse proxy, you need to make sure that the connection from the reverse proxy to the prisma-frontend container is trusted (i.e. the external reverse proxy is installed on the same server), because otherwise the traffic might be intercepted.

This could allow attackers to leak secrets or modify requests sent to the Prisma Server.

If the reverse proxy is running on a different host or the connection is not trusted for some other reason, you can follow the steps described in Section 5.2. using an internal (potentially self-signed) certificate to additionally protect this communication.

4.2. Serve HTTPS using included nginx

If you have a TLS certificate, you can configure the prisma-frontend container to serve HTTPS.

To configure this nginx server to serve HTTPS, simply follow these steps:

Create a new directory prisma-frontend/data/ssl.
Rename your HTTPS/TLS certificate and private key to prisma-frontend.cert and prisma-frontend.key respectively and place them both inside the newly created prisma-frontend/data/ssl/ directory
Edit the docker-compose.yaml file:
- In the prisma-frontend service definition, uncomment the bind mount for the ./df/frontend/data/cfg/prisma-https.conf config file
- Make sure the prisma-http.conf config file is not included
- Uncomment the port mapping 443:443, so the HTTPS service is exposed outside the container. (Port 80 will redirect HTTP clients to HTTPS on port 443)
- The prisma-frontend service definition in your docker-compose.yaml file should now look like this (with additional lines omitted at [...]):
```
prisma-frontend:
  # [...]
  ports:
    - 80:80
    - 443:443
  volumes:
    - ./prisma-frontend/data/cfg/prisma-base.conf:/etc/nginx/conf.d/prisma-base.conf
    - ./prisma-frontend/data/cfg/prisma-https.conf:/etc/nginx/conf.d/default.conf
    - ./prisma-frontend/data/ssl/:/etc/nginx/ssl/
```

If you have a .pfx file instead of separate files for your certificate and private key (for example, if you’re using Active Directory Certificate Services), you can extract the certificate and private key into separate files as follows.

From the deployment directory, run the following command to extract the certificate:

openssl pkcs12 -in yourfile.pfx -clcerts -nokeys -out prisma-frontend.cert

Run the following command to decrypt and extract the private key:

openssl pkcs12 -in yourfile.pfx -nocerts -noenc -out prisma-frontend.key

You will be prompted to type the import password. Type the password that you used to protect your keypair when you created the .pfx file.

Keep the .key file secure, as it contains an unencrypted private key.

5. Run services

Run these commands from prisma-deployment/, where .env and docker-compose.yaml are located:

docker compose pull
docker compose up -d

You can now access the Prisma frontend using the configured port and protocol.

You can see the server logs for any errors using docker compose logs. Optionally, you can specify a specific service, such as docker compose logs prisma-server.

If you encounter any problems or need help with your configuration, please contact us. We’re happy to help you!

6. Prisma AI

The deployment contains and enables all services for anomaly detection with Prisma AI (prisma-ai-trainer, prisma-ai-tester and prisma-ai-server). On startup, the Prisma Server automatically registers the bundled AI Server declared in the configs section of the docker-compose.yaml file, unless your license does not include Prisma AI.

To stream metrics to the AI Server, your Zabbix server must be configured to start at least 1 connector with the StartConnectors configuration option. This is set to 0 by default. Read more in Zabbix documentation

Next steps

After successfully installing your Prisma Server, open the Prisma frontend in your web browser using the configured port and protocol. You can sign in using default Prisma manager account, which has the following credentials:

Email: admin@prisma.loc
Password: the (generated) password from DEFAULT_ACCOUNT_PASSWORD in the .env file

We highly recommend that you create a new Prisma manager account with a secure password, and then disable the default account using the DEFAULT_ACCOUNT_ENABLED flag the .env file.

By disabling the default Prisma manager account, you ensure that only the newly created Prisma manager has access to Prisma. This is a good security practice to prevent unauthorized access to the Prisma Server.

You should have at least one manager account with the Superadmin role, which has elevated privileges to help with managing the instance.

Learn more about Prisma managers and how to create them in the chapter Prisma manager.

After signing into the Prisma frontend, you can proceed as follows:

Visit the License page to review your license parameters.
Check the Microservices page to see if all your microservices have been detected correctly. The following microservices should appear at least once in the list:
- prisma-collector
- prisma-preprocessor
- prisma-renderer
- prisma-deliverer
- prisma-ai-trainer
- prisma-ai-tester
Refer to the Prisma manager manual to continue with your Zabbix server setup before being ready to use the Prisma user features.
Refer to the Prisma user manual to start working the Prisma user feature like the Zabbix Client, Self Provisioning, Reporting or Prisma AI.

If you need any help, don’t hesitate to contact us.

Notes for existing deployments

To enable Prisma AI in a deployment created with an older deployment package, apply the AI related changes of the current docker-compose.yaml file and make sure PRISMA_AI_SERVER_REGISTRATION_TOKEN in your .env file is set. If you have already registered the AI Server manually, keep its registration token; the existing AI Server is then left unchanged.

Notes about bundled internal storage

If you would like to use the reporting and Prisma AI functionality, you need to configure an S3 bucket in Prisma.

Since Prisma v7.8, you can use the bundled internal S3 storage. You can simply select “Internal storage” in the Zabbix server configuration.

If you ran the ./gen_passwords.sh script, a secure secret key will have already been created, otherwise, you’ll need to configure the S3_MASTER_KEY manually. This internal storage is only intended for use by one Prisma Server, which also handles credential management, etc.

If you need to access the S3 bucket from outside of the Prisma instance, we recommend setting up a reverse proxy to forward https://s3.example.org/ to port 8333 on the S3 docker container.

You can use the following S3 credentials to authenticate to the S3 API:

Username: prisma
Password: The S3_MASTER_KEY configured on the server (in the .env file)
