Zabbix server setup

The Zabbix server must be affiliated with a specific company and accompanied by a root user. This root user is essential for administrative tasks, such as creating service users and Zabbix user groups on the associated server.

Listing Zabbix servers

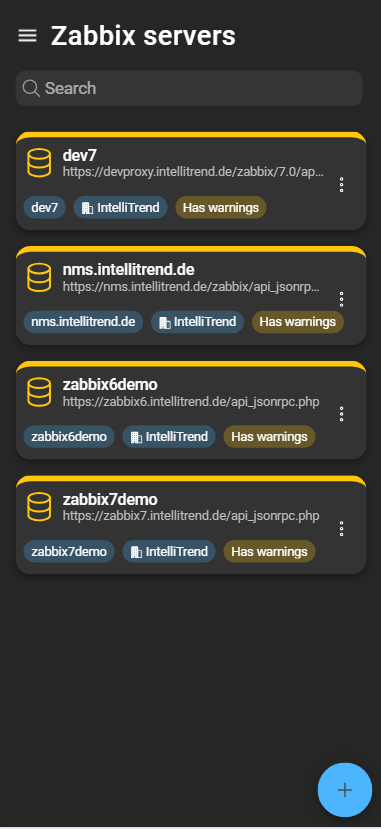

The Zabbix server page displays a list of all integrated servers:

Each added server is represented by a card and includes:

• Server name.
• Server identifier.
• Company the server is assigned to.
• Synchronization warnings.

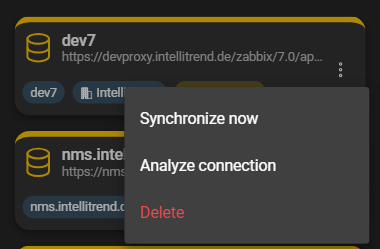

• Context menu.

• Synchronize now: Manually start synchronization. Usually unnecessary, as Prisma synchronizes automatically.
• Analyze connection: Explained later in this chapter.
• Delete: Removes the server from Prisma.

Adding Zabbix servers to Prisma

Navigate to Administration > Zabbix servers and click the blue plus to open Zabbix server creation dialog.

1. General Zabbix server configuration

• Company: Company the server belongs to.
• Name: Name of the Zabbix server.
• Identifier: Used as the Zabbix server identifier when adding a Prisma user account.
• Zabbix frontend URL: The URL of the Zabbix server’s frontend
• Additional connection settings:
  • Security Mode: Select between Plain, Basic Auth, and API Guard.
  • Trust system certificate authority pool: Toggle to trust the system CA pool.
  • Deposit certificate authority: If the CA pool is not trusted, upload the CA certificate.

Click Continue to go to the Authentication section:

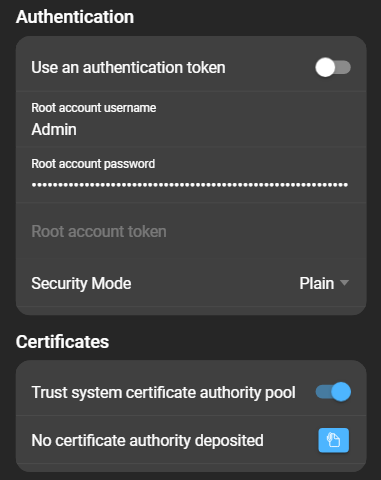

2. Authentication

Prisma requires a Zabbix super admin user in order to perform various task on the Zabbix server that are required for Prisma to work, such as user and user group management.

• Use an authentication token: Toggle to use a token instead of username and password.
• Root account username / password: Credentials of the root user.
• Root account token: Token if token-based authentication is selected.

Click Continue to proceed to the Zabbix user selection

3. Zabbix user selection

Select Zabbix users that should be imported as Prisma users. These users will be able to sign in as Prisma users.

4. Prisma user group creation

Select Prisma users that should be part of your first Prisma user group. Members of a Prisma user group will be able to use Prisma AI and Prisma Reporting.

• Prisma User group: The name of your Prisma user group that will be created as a Zabbix user group on your Zabbix server.
• Service user role: The Zabbix role of your service user.
• Prisma user group members: Select your members for this group. These users will be able to create and manage Prisma AI and Prisma Reporting resources for this group.

5. Summary

Before completing the Zabbix servers creation, a complete summary of your configuration is shown. This summary includes all actions that Prisma will execute on your Zabbix server, like creating a Zabbix user group and assigning users to that group.

Click Finish creation to complete the process.

Configuring Zabbix servers

The configuration is accessed by clicking the settings icon of a server. It is split into sections:

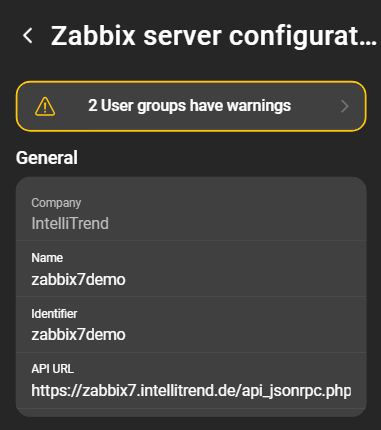

1. Warnings and general

Includes configuration specified during creation. The company cannot be changed.

Warnings regarding user groups are displayed first. Clicking the box opens a dialog with an overview of all warnings:

2. S3 object storage

The S3 object storage stores generated reports, AI datasets, models, and tests.

Available modes:

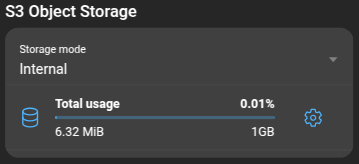

Internal

Uses the instance-provided S3 storage. Storage size must be allocated in GiB. Allocation is deducted from the company quota.

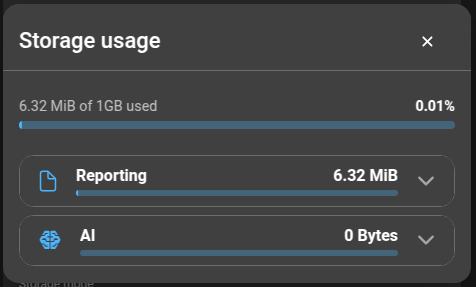

Clicking Total usage opens a dialog with storage usage details:

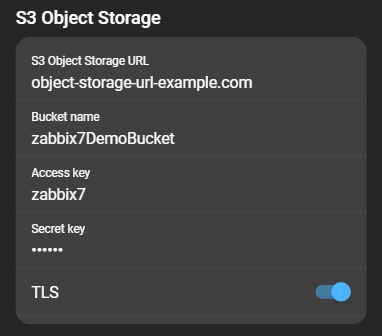

External

Uses external S3 storage. Required fields:

• Object storage URL: URL of the storage.
• Bucket name: Target bucket.
• Access key: Access key for authentication.
• Secret key: Secret key for authentication.
• Require TLS: Toggle to require TLS.

Disabled

Disables S3 storage for this server. Reporting and AI are disabled.

3. AI server

Register and manage AI servers used for AI.

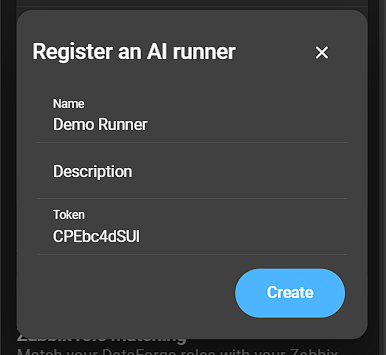

Click Register a new AI server to open the form:

• Name: AI server name.
• Description: Description of the AI server.
• Token: Token used to register the server. Must be provided in the server configuration file.

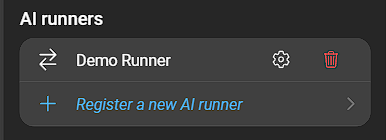

Click Create to register. The server appears in the list:

• Configuration: Click the cogwheel icon to edit.
• Remove: Click the bin icon to delete.

4. Zabbix role matching

Defines how user roles are assigned when importing Zabbix users. More details in Role matching.

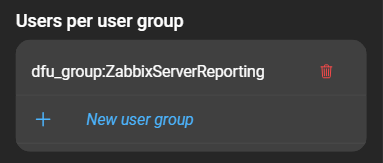

5. Users per user group

Displays user groups on the server. Groups are required for Reporting. More in Prisma user groups.

6. User configuration

Manage imported users or impersonate them in the Imported Zabbix users section.

• More about Importing Zabbix users.
• More about Impersonating.

Synchronizing now

Manual synchronization can be triggered via the context menu by clicking Synchronize now. This ensures Prisma uses the latest data.

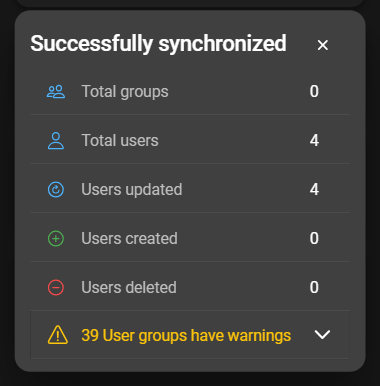

After synchronization, results include the number of updated entities and any warnings or errors. The warnings and errors section can be expanded and is also accessible in server details.

Verifying the connection and credentials

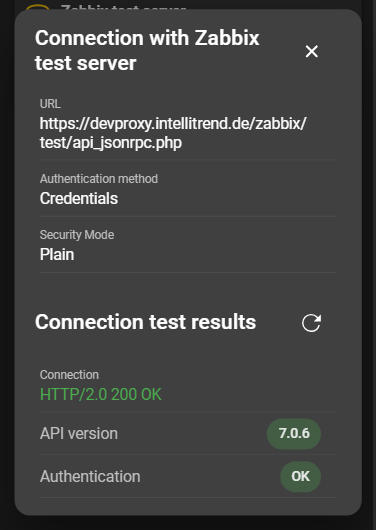

To verify the connection, open the context menu and select Analyze connection. The results are displayed:

Possible outcomes:

1. Connection chip shows ERROR (red): No connection can be established, likely due to an incorrect URL.
2. API version chip shows ERROR (red): Connection established, but endpoint is not a Zabbix API.
3. Authentication chip shows ERROR (red): API reachable, but root user credentials are incorrect.
4. All chips green: Connection and authentication successful.
