Mean time to interaction (MTTI)
The MTTI widget retrieves interaction data of triggers from of a host group and presents them in a list.
The list is sorted by the mean time to recover and contains information about interaction with that trigger.

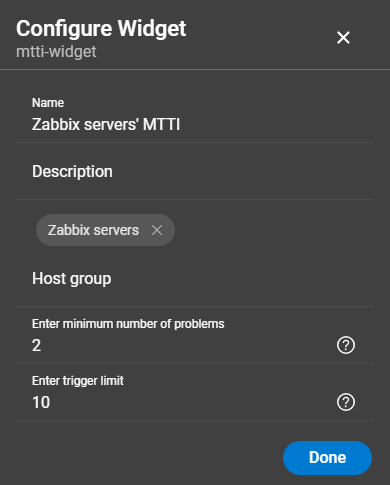

The configuration of a MTTI widget offers the following options (aside from the general settings of a widget):
- Host groups: Select host groups to be included in the report.
- Enter minimum number of problems: The minimum amount of problems that trigger generated.
- Enter trigger limit: The maximum amount of triggers displayed in the PDF render list.

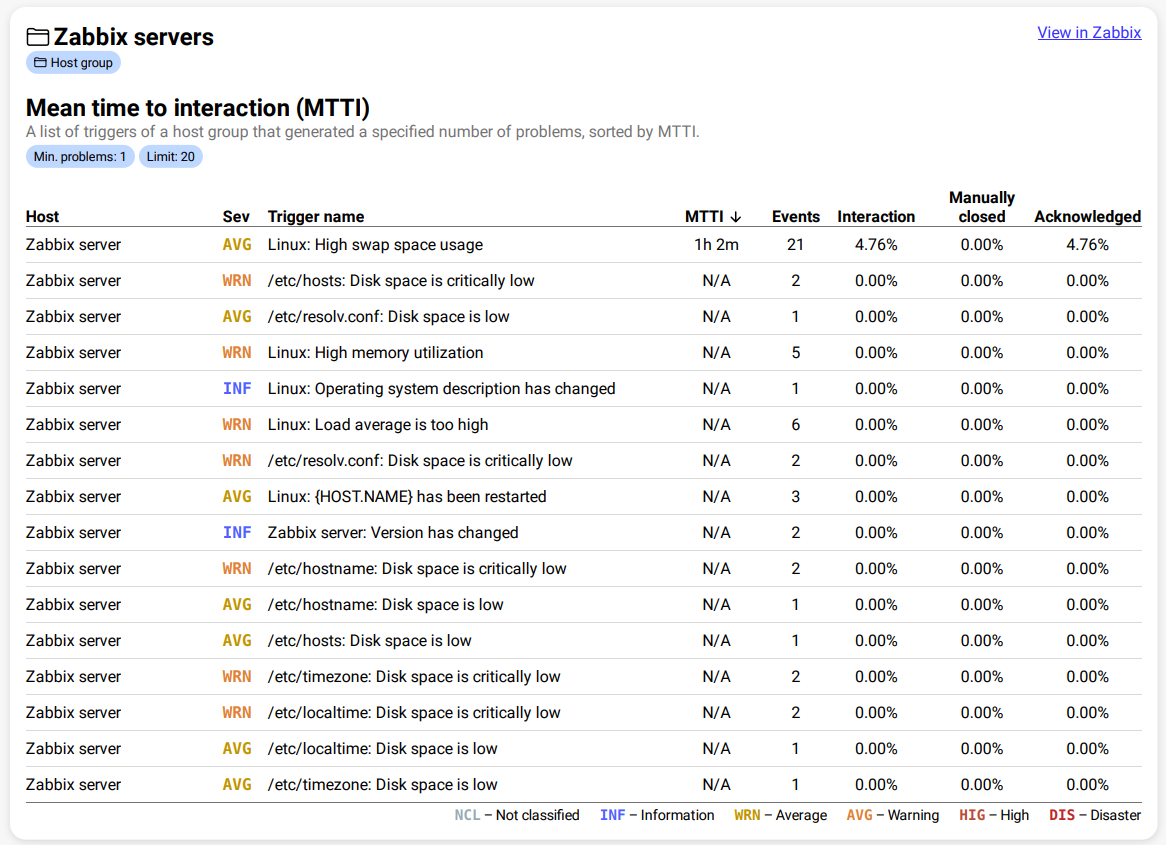

Render examples
- Host: The source host of the trigger.
- Sev: The severity associated with the trigger.
- Trigger name: The name of the trigger.
- MTTI: The mean time it took to interact with an event generated by the trigger within the report period.
- Events: The amount of events the trigger generated within the report period.
- Interaction: The relative number of
eventsthat have been interacted with. - Manually closed: The relative number of
eventsthat have been manually closed. - Acknowledged: The relative number of
eventsthat have been acknowledged.
{
"name": "trigger-state-widget",
"displayName": "Trigger state",
"description": "trigger state widget",
"error": "",
"config": {
"host_groups": [
{
"id": 8,
"name": "IntelliTrend"
}
],
"limit": 10
},
"hostgroups": [
{
"hostgroup": {
"flags": 0,
"groupid": 87,
"name": "IntelliTrend",
"uuid": "4295dbc61b19f6e276ec19f"
},
"triggers": null
},
{
"hostgroup": {
"flags": 0,
"groupid": 7,
"name": "IntelliTrend",
"uuid": "46d62361918f45802b8"
},
"triggers": [
{
"trigger": {
"comments": "Host {HOST.NAME}: Temperatur auf dem Sensor 2 zu hoch / {ITEM.LASTVALUE1} °C",
"correlation_mode": 0,
"description": "[{HOST.NAME}] - Sensor 2 Temperatur \u003e {$UMGEBUNG_TEMP_WARNING:\"2\"} °C / {ITEM.LASTVALUE1} °C",
"expression": "{42863}\u003e{$UMGEBUNG_TEMP_WARNING:\"2\"}",
"flags": 4,
"groups": [
{
"flags": 0,
"groupid": 7,
"name": "IntelliTrend",
"uuid": "46d6234dd8f45802b8"
}
],
"hosts": [
{
"description": "MessBox",
"flags": 0,
"host": "messpc1",
"hostid": 11797,
"inventory_mode": 0,
"ipmi_authtype": -1,
"ipmi_privilege": 2,
"maintenance_from": 0,
"maintenance_status": 0,
"maintenance_type": 0,
"name": "Umgebung: MessPC1",
"proxy_hostid": 1053,
"status": 0,
"tls_accept": 1,
"tls_connect": 1,
"proxyid": 10543
}
],
"lastchange": 1744752488,
"manual_close": 0,
"priority": 2,
"recovery_expression": "{42864}\u003c{$UMGEBUNG_TEMP_WARNING:\"2\"}*(1-{$HYSTERESIS_COEFFICIENT})",
"recovery_mode": 1,
"state": 0,
"status": 0,
"triggerid": 29038,
"type": 0,
"value": 1,
"hostGroups": [
{
"flags": 0,
"groupid": 7,
"name": "IntelliTrendk",
"uuid": "46d623619195dd8f45802b8"
}
]
},
"events": [
{
"acknowledged": 0,
"clock": 1744043768,
"eventid": 558720,
"name": "[Umgebung: MessPC1] - Sensor 2 Temperatur \u003e 29 °C / 29.4 °C",
"ns": 496766631,
"object": 0,
"objectid": 29038,
"r_eventid": 55829108,
"severity": 2,
"source": 0,
"suppressed": 0,
"value": 1
}
],
"totalTimeInProblemState": 191640,
"percentageOfTimeInProblemState": 31.686507936507937
}
]
},
]
}
